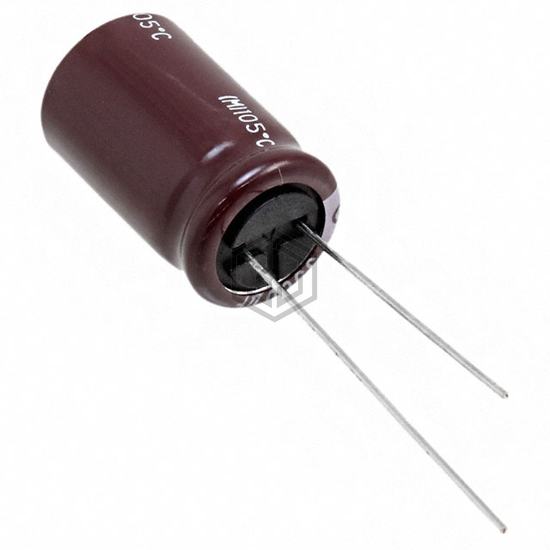

CAP ALUM 1500UF 20% 25V RADIAL
EKZN250ELL152MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXG1500MEFCG412.5X25 | Rubycon | CAP ALUM 1500UF 20% 25V RADIAL | 93% | View |
| UPA1V152MHD | Nichicon | CAP ALUM 1500UF 20% 35V RADIAL | 78% | View |
| SLP152M100C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 100V SNAP | 72% | View |
| EKMH101VNN152MR30S | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 71% | View |
| EKYB500ELL152MLN3S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 70% | View |
| MAL214836152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 66% | View |
Submit your RFQ for EKZN250ELL152MK20S and get a quote within 24 hours.
