CAP ALUM 220UF 20% 6.3V RADIAL

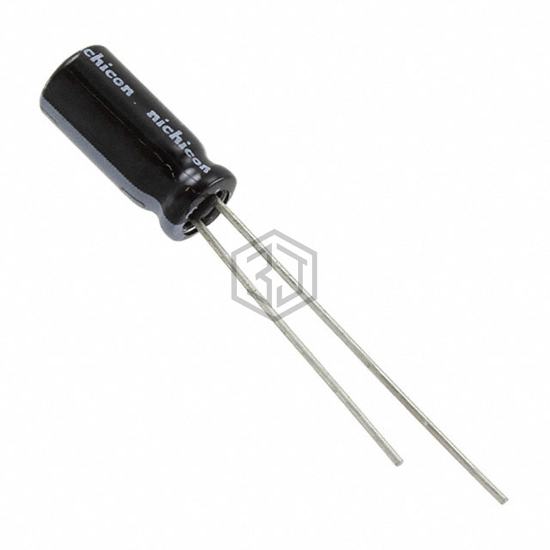

UHV0J221MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 100 kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV0J221MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN6R3ELL221ME11D | United Chemi-Con | CAP ALUM 220UF 20% 6.3V RADIAL | 92% | View |
| SEK221M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 6.3V RADIAL | 84% | View |
| EEA-GA1A221H | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V RADIAL | 74% | View |
| UBX1C221MPL1TD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 70% | View |
| 25PX220MEFC6.3X11 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 67% | View |
| ED1E221MP26311U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
