Cornell Dubilier Electronics (CDE)
CAP ALUM 220UF 20% 6.3V RADIAL

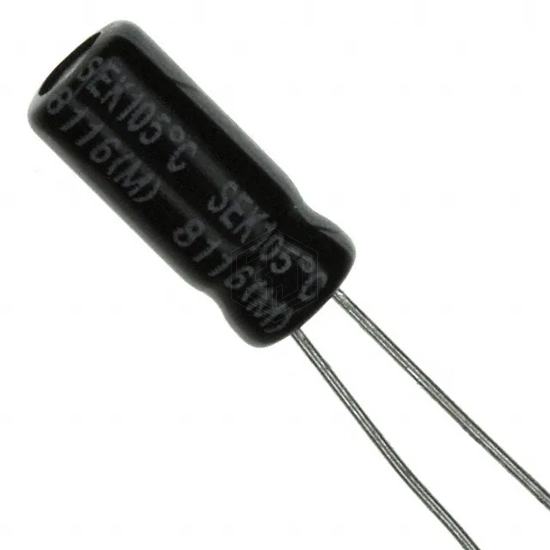

SEK221M6R3ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 1.57Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz |
| Ripple Current @ High Frequency | 198 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1A221H | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V RADIAL | 80% | View |
| UBX1C221MPL1TD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 67% | View |
| 25PX220MEFCT16.3X11 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 61% | View |
| 25WXA220MEFCT78X9 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 61% | View |
| 25PX220MEFC6.3X11 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 61% | View |
| MAL216035221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for SEK221M6R3ST and get a quote within 24 hours.
