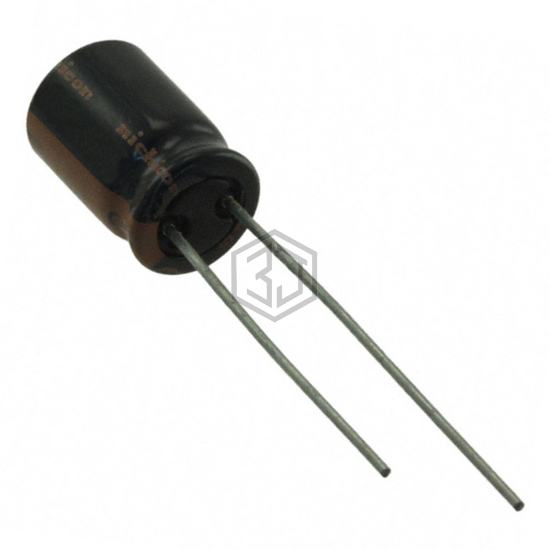

CAP ALUM 1500UF 20% 10V RADIAL
UHN1A152MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,983
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 12 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHN1A152MPD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHM1A152MPD | Nichicon | CAP ALUM 1500UF 20% 10V RADIAL | 91% | View |
| EKZG100ELL152MH20D | United Chemi-Con | CAP ALUM 1500UF 20% 10V RADIAL | 87% | View |
| LAQ2D152MELC45 | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 56% | View |
| 601D158G040JP1 | Vishay Sprague | CAP ALUM 1500UF 40V AXIAL | 56% | View |
| EKMR161VSN152MA25S | United Chemi-Con | CAP ALUM 1500UF 20% 160V SNAP | 56% | View |
| EKMH101VNN152MR30S | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 56% | View |
