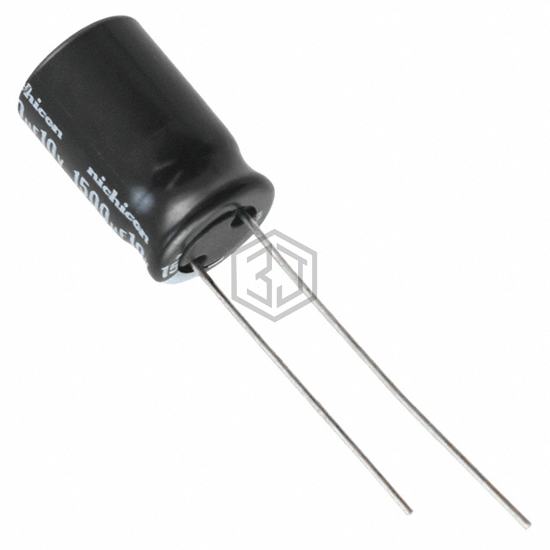

CAP ALUM 1500UF 20% 10V RADIAL
UHM1A152MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,553
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHM1A152MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZG100ELL152MH20D | United Chemi-Con | CAP ALUM 1500UF 20% 10V RADIAL | 96% | View |
| UHV1C152MPD1TD | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 76% | View |
| 16ZLH1500MEFC10X20 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 75% | View |
| MAL216056152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 59% | View |
| 601D158G040JP1 | Vishay Sprague | CAP ALUM 1500UF 40V AXIAL | 56% | View |
| MAL214636152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 53% | View |
Submit your RFQ for UHM1A152MPD and get a quote within 24 hours.
