CAP ALUM 1500UF 20% 10V RADIAL

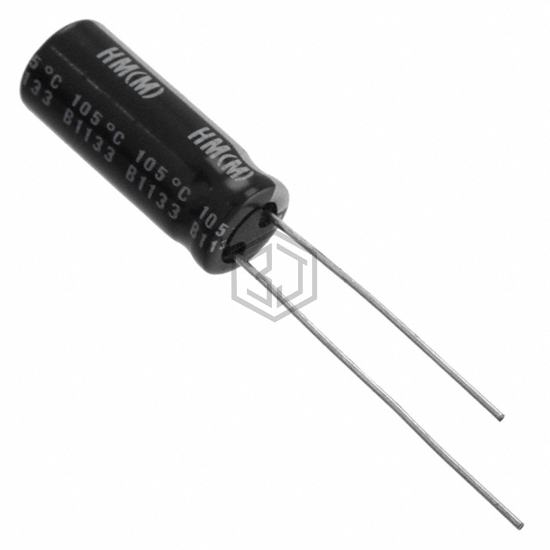

UHM1A152MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,436
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 18 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHM1A152MPD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 10ZLK1500MT810X20 | Rubycon | CAP ALUM 1500UF 20% 10V RADIAL | 90% | View |
| 35YXG1500MEFCG412.5X35 | Rubycon | CAP ALUM 1500UF 20% 35V RADIAL | 64% | View |
| MAL217051152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 59% | View |
| 6.3YXS1500MEFC10X16 | Rubycon | CAP ALUM 1500UF 20% 6.3V RADIAL | 56% | View |
| MAL215036152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 56% | View |
| ELXY250ELL152MK30S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for UHM1A152MPD6 and get a quote within 24 hours.
