CAP ALUM 1500UF 20% 35V RADIAL

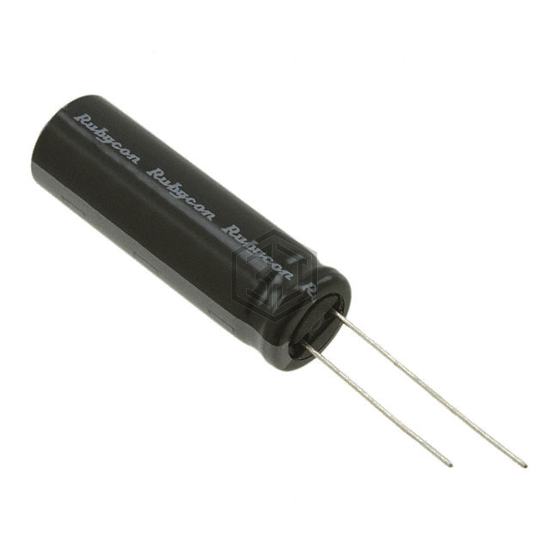

35YXG1500MEFCG412.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,909
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.728 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.88 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41895A7158M004 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 35V RADIAL | 96% | View |
| KZE35VB152M12X35LL | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 90% | View |
| MAL215036152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 74% | View |
| ELXY250ELL152MK30S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 70% | View |
| 10ZLK1500MT810X20 | Rubycon | CAP ALUM 1500UF 20% 10V RADIAL | 63% | View |
| 160MXC1500MEFC30X40 | Rubycon | CAP ALUM 1500UF 20% 160V SNAP | 58% | View |
Submit your RFQ for 35YXG1500MEFCG412.5X35 and get a quote within 24 hours.
