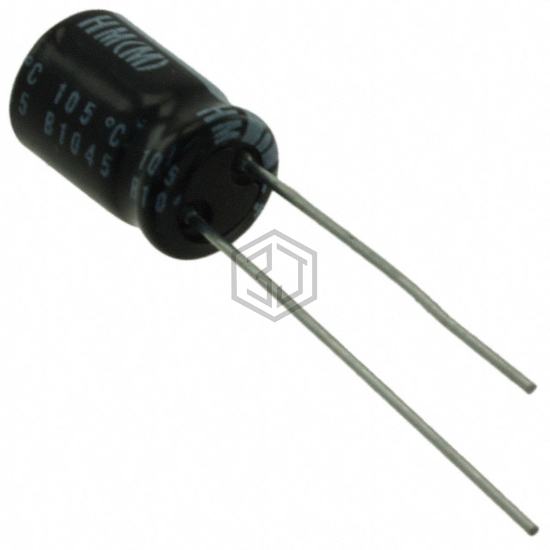

CAP ALUM 820UF 20% 6.3V RADIAL
UHM0J821MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,143
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 30 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHM0J821MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3ZLG820MEFCT78X16 | Rubycon | CAP ALUM 820UF 20% 6.3V RADIAL | 98% | View |
| UHV1C821MPD | Nichicon | CAP ALUM 820UF 20% 16V RADIAL | 67% | View |
| B41858D6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 57% | View |
| EEU-TP1E821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL | 56% | View |
| LGN2P821MELA40 | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 56% | View |
| 50ZLH820MEFCG412.5X35 | Rubycon | CAP ALUM 820UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UHM0J821MPD and get a quote within 24 hours.
