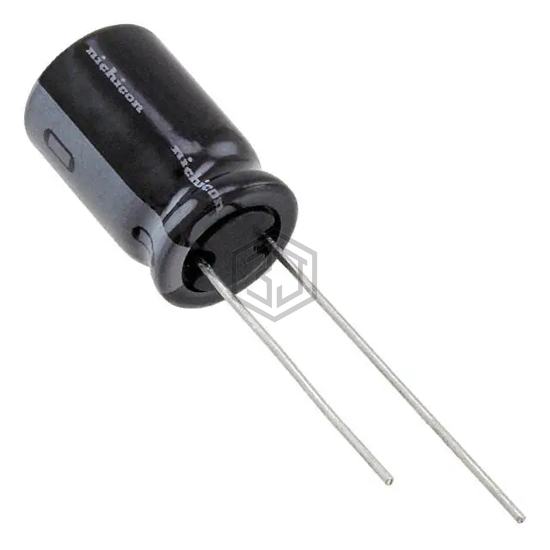

CAP ALUM 820UF 20% 16V RADIAL
UHV1C821MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,216
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1C821MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW821M1EBK-1025S | Surge | CAP ALUM 25V POLAR | 84% | View |
| LXY25VB821M10X30LL | United Chemi-Con | CAP ALUM 820UF 20% 25V RADIAL | 78% | View |
| EEU-TP1E821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL | 73% | View |
| 6.3ZLG820MEFCT78X16 | Rubycon | CAP ALUM 820UF 20% 6.3V RADIAL | 68% | View |
| B41858D6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 67% | View |
| 50ZLH820MEFCG412.5X35 | Rubycon | CAP ALUM 820UF 20% 50V RADIAL | 53% | View |
