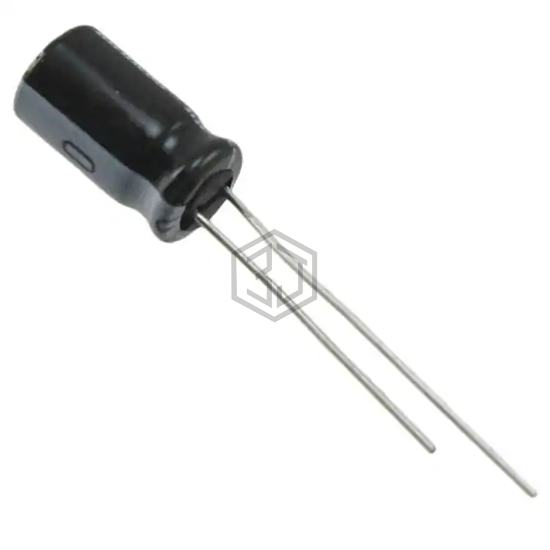

CAP ALUM 15UF 20% 100V RADIAL
UHE2A150MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,304
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 69.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 126 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE2A150MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE2A150MED | Nichicon | CAP ALUM 15UF 20% 100V RADIAL | 100% | View |
| NLW15-100 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15UF 100V AXIAL | 90% | View |
| UPM1K150MED1TD | Nichicon | CAP ALUM 15UF 20% 80V RADIAL | 84% | View |
| UPW2A150MPD1TA | Nichicon | CAP ALUM 15UF 20% 100V RADIAL | 83% | View |
| 160LLE15MEFC8X11.5 | Rubycon | CAP ALUM 15UF 20% 160V RADIAL | 71% | View |
| 400AX15MEFC8X20 | Rubycon | CAP ALUM 15UF 20% 400V RADIAL | 53% | View |
Submit your RFQ for UHE2A150MED1TA and get a quote within 24 hours.
