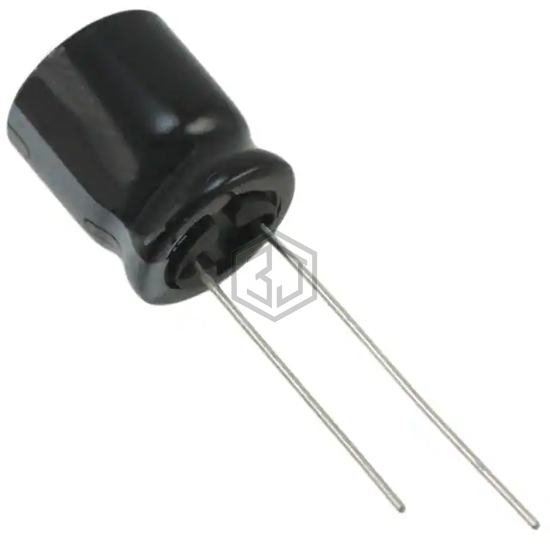

CAP ALUM 470UF 20% 63V RADIAL
UHE1J471MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,453
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 757.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.01 A @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J471MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C6477M4 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 85% | View |
| MAL214091473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 81% | View |
| ESC477M016AH1AA | KEMET | CAP ALUM 470UF 20% 16V RADIAL | 74% | View |
| 511D477M075EN4D | Vishay Sprague | CAP ALUM 470UF 20% 75V RADIAL | 74% | View |
| EKY-800EC5471MK35S | United Chemi-Con | CAP ALUM 470UF 20% 80V RADIAL | 69% | View |
| EKZE101ELL471MM25S | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 61% | View |
Submit your RFQ for UHE1J471MHT and get a quote within 24 hours.
