CAP ALUM 270UF 20% 63V RADIAL

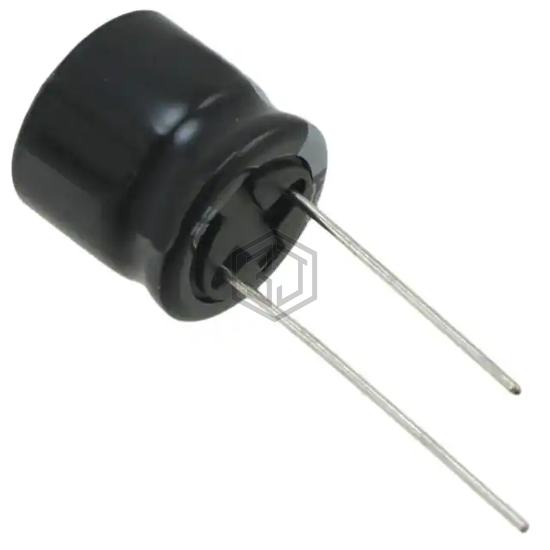

UHE1J271MHT3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,385
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 626.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 895 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J271MHT3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D277G050FJ3 | Vishay Sprague | CAP ALUM 270UF 50V AXIAL | 85% | View |
| UPA1V271MPD6TD | Nichicon | CAP ALUM 270UF 20% 35V RADIAL | 73% | View |
| EKYB800ELL271MJ30S | United Chemi-Con | CAP ALUM 270UF 20% 80V RADIAL | 72% | View |
| B41896C7277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 35V RADIAL | 59% | View |
| 860080273008 | Würth Elektronik | CAP ALUM 270UF 20% 10V RADIAL | 57% | View |
| LGN2E271MELZ25 | Nichicon | CAP ALUM 270UF 20% 250V SNAP | 51% | View |
