CAP ALUM 270UF 20% 35V RADIAL

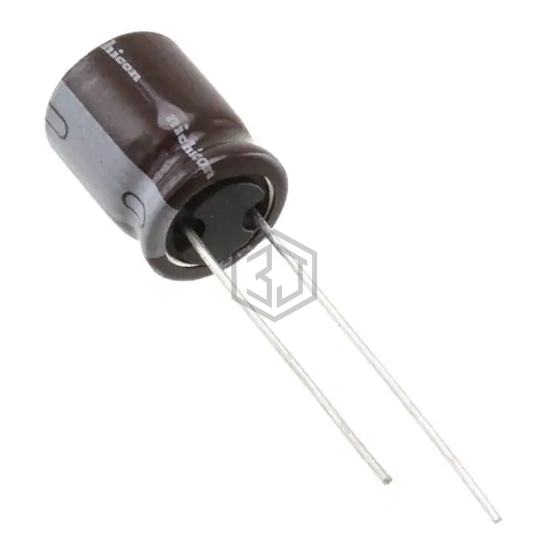

UPA1V271MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 585 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPA1V271MPD6TD and get a quote within 24 hours.
