CAP ALUM 4700UF 20% 25V RADIAL

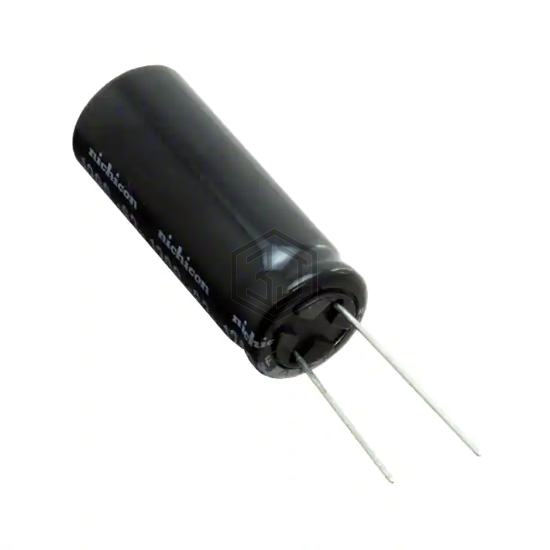

UHE1E472MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,005
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.376 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.22 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1E472MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKE00KL447EG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 83% | View |
| LGU1K472MELC | Nichicon | CAP ALUM 4700UF 20% 80V SNAP | 77% | View |
| 16YXH4700MEFC18X25 | Rubycon | CAP ALUM 4700UF 20% 16V RAD TH | 69% | View |
| ESH478M035AN2AA | KEMET | CAP ALUM 4700UF 20% 35V RADIAL | 61% | View |
| UBT1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 55% | View |
| EKMH350VSN472MP30U | United Chemi-Con | CAP ALUM 4700UF 20% 35V SNAP | 54% | View |
