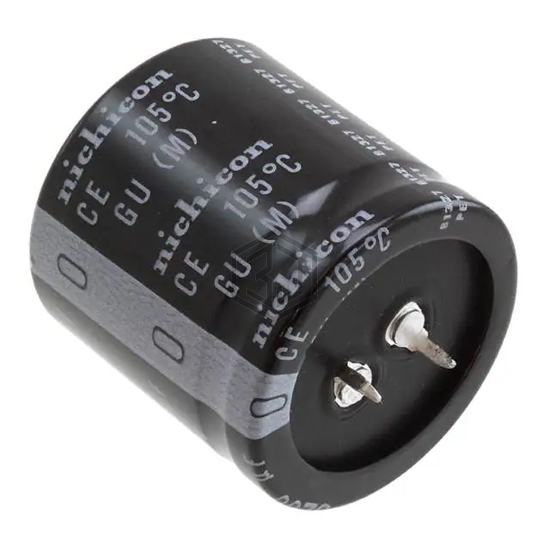

CAP ALUM 4700UF 20% 80V SNAP
LGU1K472MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 5,180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.025 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VNN472MQ50T | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 100% | View |
| UHE1E472MHT6 | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 77% | View |
| ALC80C472DF100 | KEMET | CAP ALUM 4700UF 20% 100V SNAP | 58% | View |
| UBT1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 54% | View |
| EEU-FK1A472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RAD TH | 51% | View |
| ESH478M035AN2AA | KEMET | CAP ALUM 4700UF 20% 35V RADIAL | 50% | View |
Submit your RFQ for LGU1K472MELC and get a quote within 24 hours.
