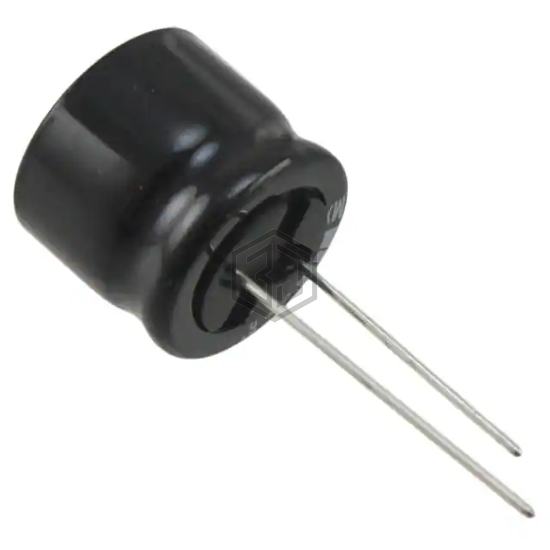

CAP ALUM 2200UF 20% 16V RADIAL
UHE1C222MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,691
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.768 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1C222MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP222M080E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 80V SNAP | 73% | View |
| B41252A8228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 63V SNAP | 70% | View |
| UBY1H222MHL | Nichicon | CAP ALUM 2200UF 20% 50V RADIAL | 63% | View |
| B41505A228M2 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 80V SNAP | 59% | View |
| 383LX222M200A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 200V SNAP | 56% | View |
| MAL211914222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 10V AXIAL | 56% | View |
