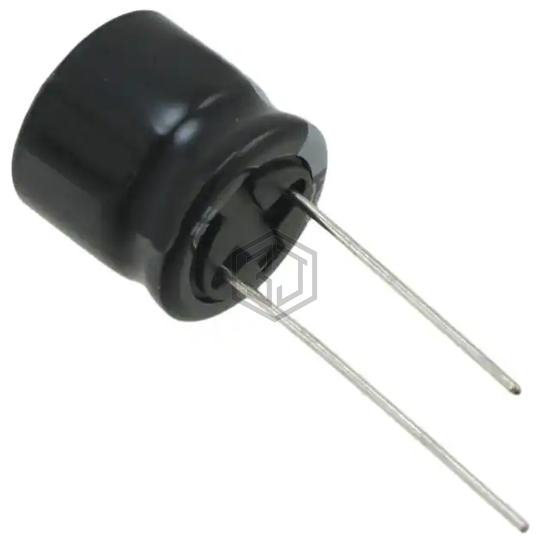

CAP ALUM 2700UF 20% 6.3V RADIAL
UHE0J272MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,883
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.552 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.94 A @ 100 kHz |
| Impedance | 42 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J272MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV100ETE272MK30S | United Chemi-Con | CAP ALUM 2700UF 20% 10V RADIAL | 81% | View |
| EKYB100ELL272MJ30S | United Chemi-Con | CAP ALUM 2700UF 20% 10V RADIAL | 78% | View |
| 35VXG2700MEFCSN22X25 | Rubycon | CAP ALUM 2700UF 20% 35V SNAP | 68% | View |
| LGU1J272MELA | Nichicon | CAP ALUM 2700UF 20% 63V SNAP | 67% | View |
| MAL226055272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 65% | View |
| 30D278M025GK2A | Vishay Sprague | CAP ALUM 2700UF 20% 25V AXIAL | 56% | View |
Submit your RFQ for UHE0J272MHD and get a quote within 24 hours.
