CAP ALUM 2700UF 20% 63V SNAP

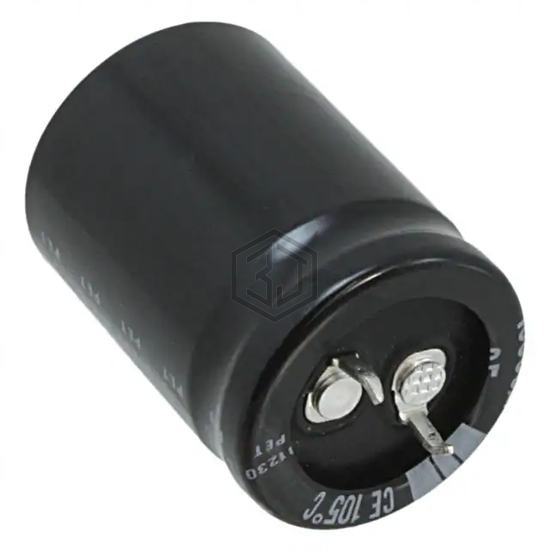

LGU1J272MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 1,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4265 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VSN272MQ35U | United Chemi-Con | CAP ALUM 2700UF 20% 63V SNAP | 99% | View |
| EKMH630VNN272MR25T | United Chemi-Con | CAP ALUM 2700UF 20% 63V SNAP | 93% | View |
| 16ZLH2700MEFC12.5X25 | Rubycon | CAP ALUM 2700UF 20% 16V RADIAL | 74% | View |
| EKYB100ELL272MJ30S | United Chemi-Con | CAP ALUM 2700UF 20% 10V RADIAL | 72% | View |
| 30D278M025GK2A | Vishay Sprague | CAP ALUM 2700UF 20% 25V AXIAL | 56% | View |
| MAL226055272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 54% | View |
