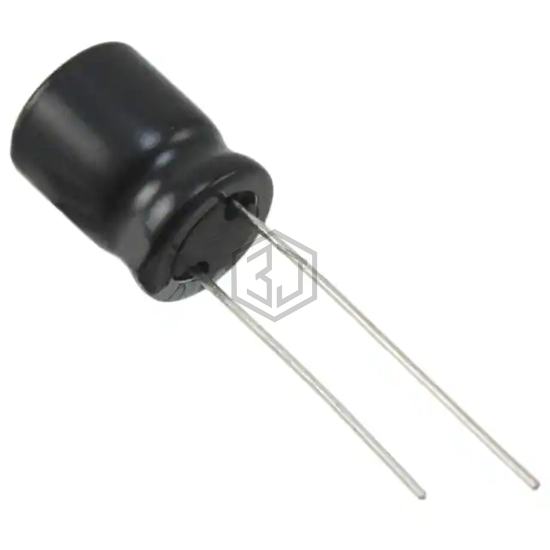

CAP ALUM 18000UF 20% 6.3V RADIAL
UHE0J183MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,237
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 18000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.424 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.28 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J183MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07AV518C02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18000UF 20% 10V SNAP | 78% | View |
| LGU1E183MELA | Nichicon | CAP ALUM 18000UF 20% 25V SNAP | 77% | View |
| EKMH160VSN183MP45U | United Chemi-Con | CAP ALUM 18000UF 20% 16V SNAP | 67% | View |
| B41252C5189M | EPCOS - TDK Electronics | CAP ALUM 18000UF 20% 25V SNAP | 66% | View |
| 860020281032 | Würth Elektronik | CAP ALUM 18000UF 20% 10V RADIAL | 65% | View |
| MAL215835183E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18000UF 20% 16V SNAP | 52% | View |
