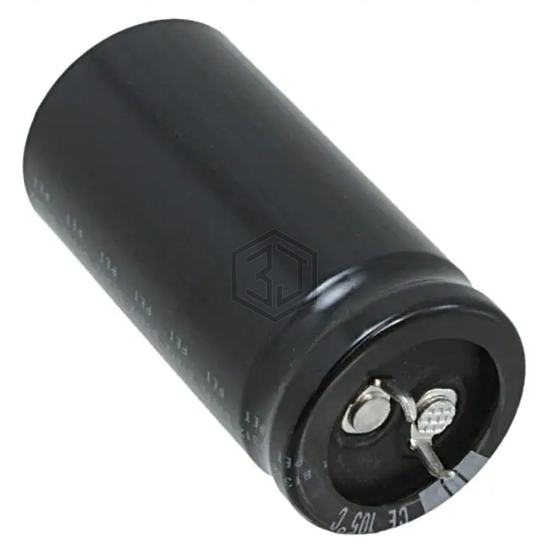

CAP ALUM 18000UF 20% 25V SNAP
LGU1E183MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 4,661
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.071 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VNN183MQ50T | United Chemi-Con | CAP ALUM 18000UF 20% 25V SNAP | 99% | View |
| B41252C5189M | EPCOS - TDK Electronics | CAP ALUM 18000UF 20% 25V SNAP | 96% | View |
| MALIEYH07CA518E02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18000UF 20% 25V SNAP | 96% | View |
| MAL215835183E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18000UF 20% 16V SNAP | 75% | View |
| EKMH160VSN183MP45U | United Chemi-Con | CAP ALUM 18000UF 20% 16V SNAP | 75% | View |
| 860020281032 | Würth Elektronik | CAP ALUM 18000UF 20% 10V RADIAL | 59% | View |
Submit your RFQ for LGU1E183MELA and get a quote within 24 hours.
