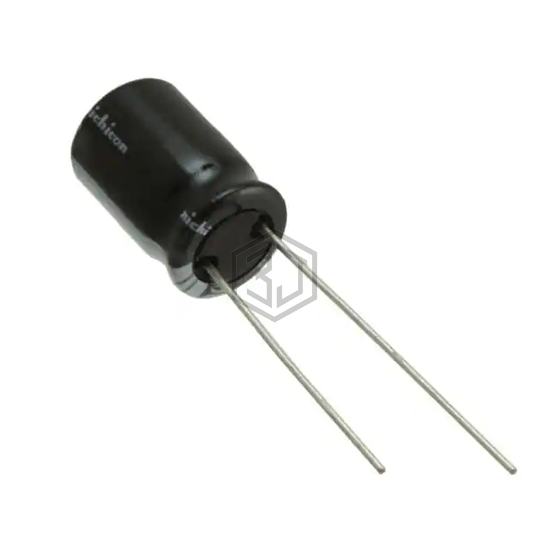

CAP ALUM 56UF 20% 50V RADIAL
UHD1H560MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,099
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 269.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 385 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1H560MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 63V RADIAL | 81% | View |
| 35ZL56MEFC6.3X11 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 78% | View |
| EKZE630ETD560MHB5D | United Chemi-Con | CAP ALUM 56UF 20% 63V RADIAL | 77% | View |
| UAS2D560MHD | Nichicon | CAP ALUM 56UF 20% 200V RADIAL | 70% | View |
| 80ZLJ56M8X16 | Rubycon | CAP ALUM 56UF 20% 80V RADIAL | 68% | View |
| EKZE101ETD560MH20S | United Chemi-Con | CAP ALUM 56UF 20% 100V RADIAL | 66% | View |
