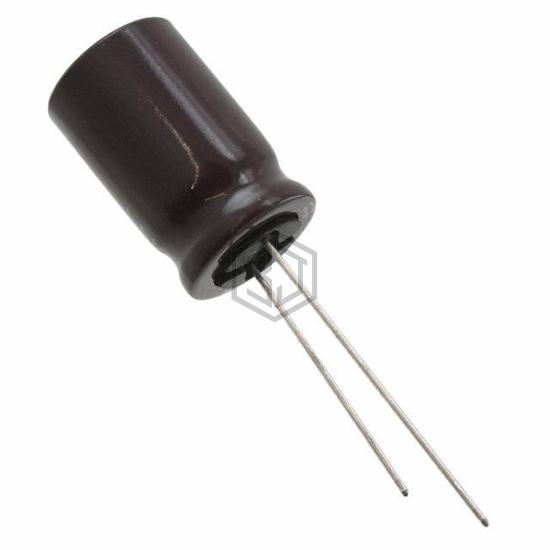

CAP ALUM 56UF 20% 200V RADIAL
UAS2D560MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 336 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 63V RADIAL | 69% | View |
| 35ZL56MEFC6.3X11 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 68% | View |
| EKZE101ETD560MH20S | United Chemi-Con | CAP ALUM 56UF 20% 100V RADIAL | 65% | View |
| ELXY350ETD560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 58% | View |
| 672D566H020CC5C | Vishay Sprague | CAP ALUM 56UF 20V RADIAL | 56% | View |
| ELXV350ELL560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for UAS2D560MHD and get a quote within 24 hours.
