CAP ALUM 220UF 20% 25V RADIAL

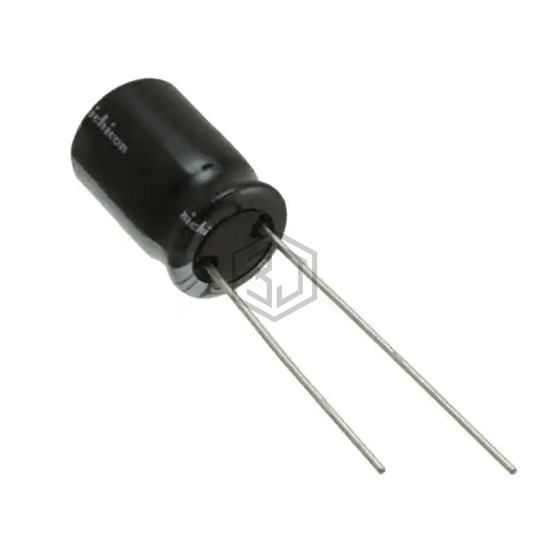

UHD1E221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,981
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 532 mA @ 120 Hz |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1E221MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 86% | View |
| EKY-250ETD221MHB5D | United Chemi-Con | CAP ALUM 220UF 20% 25V RADIAL | 84% | View |
| ECA-1VHG221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 58% | View |
| LP221M250A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 250V SNAP | 56% | View |
| 160TXW220MEFR12.5X35 | Rubycon | CAP ALUM 220UF 20% 160V RADIAL | 55% | View |
| UBT2A221MHD1TN | Nichicon | CAP ALUM 220UF 20% 100V RADIAL | 55% | View |
