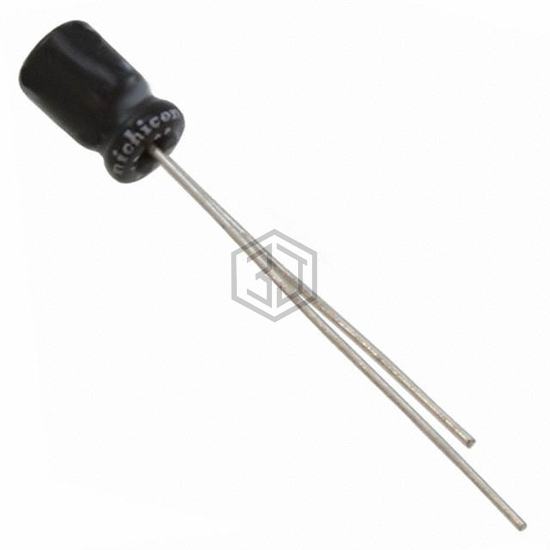

CAP ALUM 10UF 20% 25V RADIAL
UHC1E100MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,352
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 92 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 520 mOhms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHC1E100MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250LLE10MEFC10X12.5 | Rubycon | CAP ALUM 10UF 20% 250V RADIAL | 71% | View |
| UPJ2D100MPD | Nichicon | CAP ALUM 10UF 20% 200V RADIAL | 68% | View |
| UPS2E100MPD | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 66% | View |
| EKMG201ELL100MJ16S | United Chemi-Con | CAP ALUM 10UF 20% 200V RADIAL | 61% | View |
| UVZ1V100MDH | Nichicon | CAP ALUM 10UF 20% 35V RADIAL | 60% | View |
| UCS2V100MPD1TD | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 53% | View |
