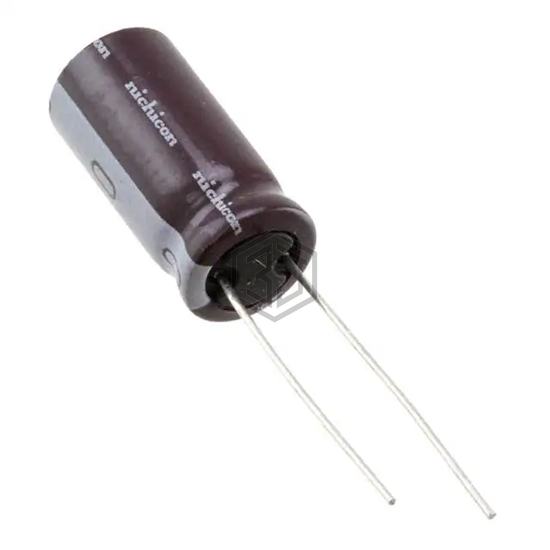

CAP ALUM 10UF 20% 250V RADIAL
UPS2E100MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 5,825
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 88 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2E100MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43866F2106M | EPCOS - TDK Electronics | CAP ALUM 10UF 20% 250V RADIAL | 96% | View |
| 250LLE10MEFC10X12.5 | Rubycon | CAP ALUM 10UF 20% 250V RADIAL | 95% | View |
| EKMG201ELL100MJ16S | United Chemi-Con | CAP ALUM 10UF 20% 200V RADIAL | 88% | View |
| UPW2C100MPH | Nichicon | CAP ALUM 10UF 20% 160V RADIAL | 75% | View |
| B43851F1106M006 | EPCOS - TDK Electronics | CAP ALUM 160V POLAR | 67% | View |
| UCS2V100MPD1TD | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 52% | View |
