CAP ALUM 22UF 20% 100V RADIAL

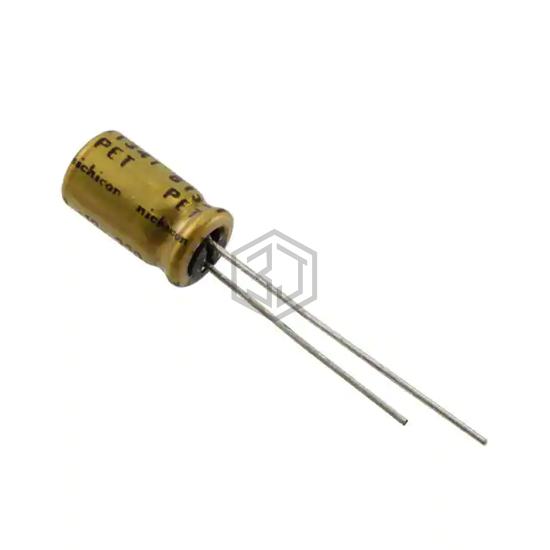

UFW2A220MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,595
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW2A220MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41821B9226M006 | EPCOS - TDK Electronics | CAP ALUM 100V POLAR | 95% | View |
| 226CKH100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 100V RADIAL | 86% | View |
| 100YXF22MEFCT78X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 83% | View |
| B43821A1226M000 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 160V RADIAL | 72% | View |
| UBW1J220MPD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 57% | View |
| MAL214262295E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 350V RADIAL | 53% | View |
Submit your RFQ for UFW2A220MED1TA and get a quote within 24 hours.
