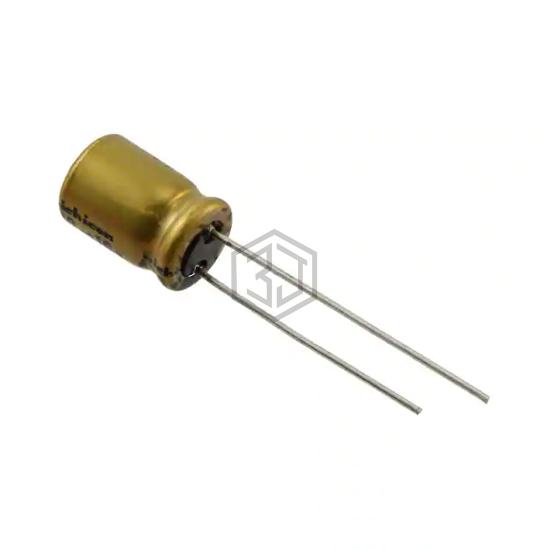

CAP ALUM 470UF 20% 16V RADIAL
UFW1C471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,587
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW1C471MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYN07BV347N02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% SNAP | 100% | View |
| UVK1C471MPD1TD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 98% | View |
| EEU-FC1C471LB | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 91% | View |
| ESMG250ELL471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 73% | View |
| URS1H471MHD | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 53% | View |
| ED1V471MP51016 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 50% | View |
Submit your RFQ for UFW1C471MPD and get a quote within 24 hours.
