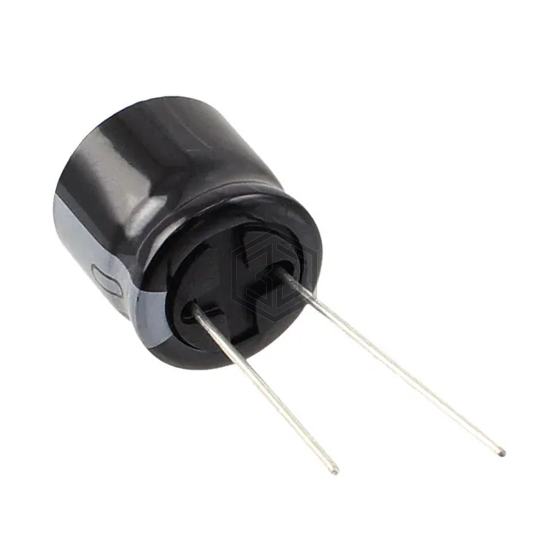

CAP ALUM 470UF 20% 50V RADIAL
URS1H471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.125 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYN07BV347N02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% SNAP | 100% | View |
| TVX1J471MCD | Nichicon | CAP ALUM 470UF 20% 63V AXIAL | 88% | View |
| B41821A8477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 63V RADIAL | 85% | View |
| UHE1V471MPD1TD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 76% | View |
| B41042A5477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 75% | View |
| 381LX471M180K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 180V SNAP | 50% | View |
