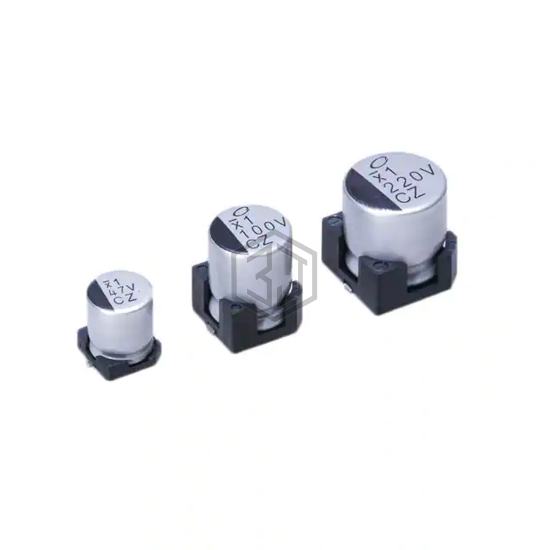

CAP ALUM 330UF 20% 80V SMD
UCZ1K331MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 767
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 170mOhm @ 100kHz |
| Lifetime @ Temp. | 3500 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1K331MNS1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1V331AQ | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 69% | View |
| UUE1E331MNS1MS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 68% | View |
| EEE-TK1H331AQ | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 66% | View |
| EEV-TG1H331Q | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 63% | View |
| EEE-TK1K331AM | Panasonic Electronic Components | CAP ALUM 330UF 20% 80V SMD | 61% | View |
| EMXB350ARA331MKE0S | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 55% | View |
