CAP ALUM 330UF 20% 25V SMD

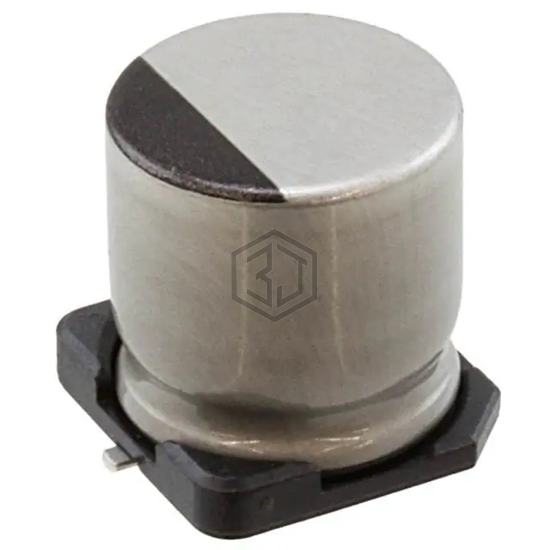

UCZ1E331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,493
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 150mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1E331MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUX331M1ETR-1010S | Surge | CAP ALUM 25V POLAR | 100% | View |
| EEE-TC1E331UP | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 94% | View |
| MAL214099611E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 87% | View |
| MAL214099012E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 73% | View |
| EEV-TG1K331M | Panasonic Electronic Components | CAP ALUM 330UF 20% 80V SMD | 73% | View |
| EEE-TPA331UAV | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 56% | View |
Submit your RFQ for UCZ1E331MCL1GS and get a quote within 24 hours.
