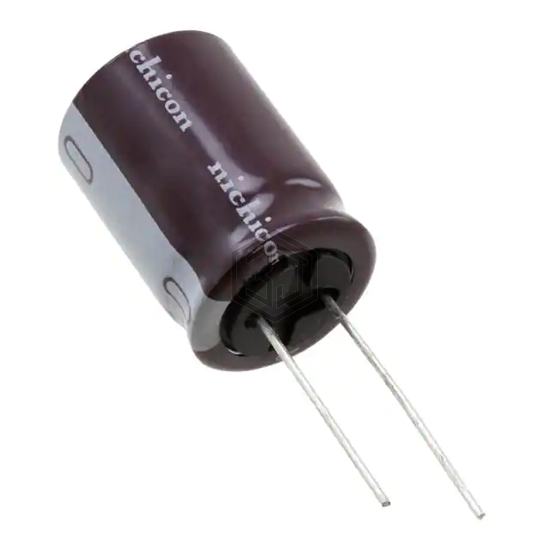

CAP ALUM 68UF 20% 420V RADIAL
UCYW6680MHD3TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 83
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 615 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.23 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450LXW68MEFR10X60 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 94% | View |
| 450BXW68MEFR12.5X45 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 93% | View |
| UCS2G680MHD1TN | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 90% | View |
| UCS2V680MHD1TN | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 88% | View |
| EKWA451ELL680MUN3S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 88% | View |
| B43858A2686M9 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 200V RADIAL | 61% | View |
Submit your RFQ for UCYW6680MHD3TN and get a quote within 24 hours.
