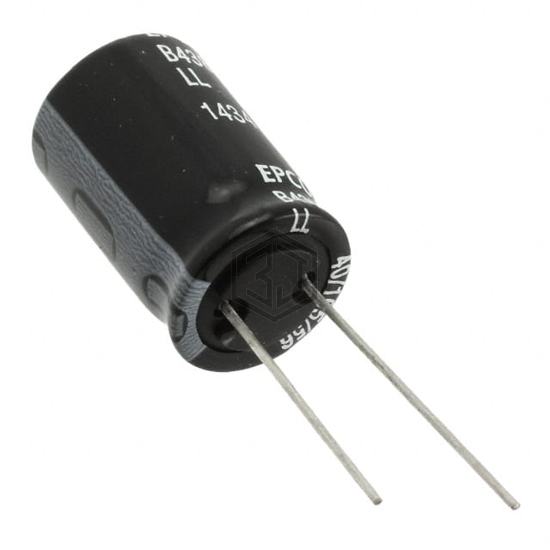

CAP ALUM 68UF 20% 200V RADIAL
B43858A2686M9 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 2,346
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RLD680M2DBK-1035S | Surge | CAP ALUM 200V POLAR | 95% | View |
| 80ZLJ68M10X12.5 | Rubycon | CAP ALUM 68UF 20% 80V RADIAL | 67% | View |
| EKZN800ELL680MH15D | United Chemi-Con | CAP ALUM 68UF 20% 80V RADIAL | 67% | View |
| UCYW6680MHD3TN | Nichicon | CAP ALUM 68UF 20% 420V RADIAL | 61% | View |
| 450LXW68MEFR10X60 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 57% | View |
| 450BXW68MEFR12.5X45 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 54% | View |
Submit your RFQ for B43858A2686M9 and get a quote within 24 hours.
