CAP ALUM 68UF 20% 450V RADIAL

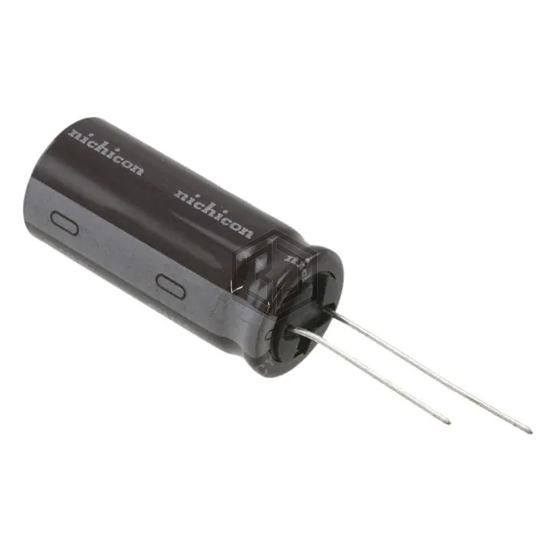

UCY2W680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,356
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.32 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCY2W680MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2G680MNY9 | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 92% | View |
| UCY2G680MHD3 | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 91% | View |
| MAL219356689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 400V SNAP | 90% | View |
| MAL225929689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 500V SNAP | 90% | View |
| 400TXW68MEFR16X25 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 77% | View |
| EEU-FS2A680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 70% | View |
Submit your RFQ for UCY2W680MHD and get a quote within 24 hours.
