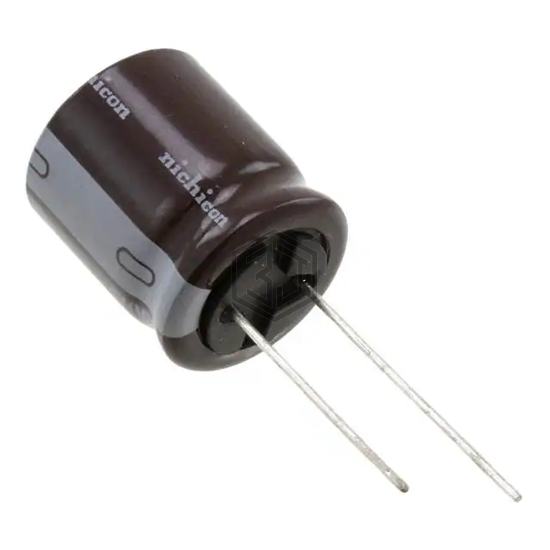

CAP ALUM 39UF 20% 450V RADIAL
UCY2W390MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | 880 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCYW6390MHD | Nichicon | CAP ALUM 39UF 20% 420V RADIAL | 97% | View |
| 500HXW39MEFR12.5X35 | Rubycon | CAP ALUM 39UF 20% 500V RADIAL | 96% | View |
| EKXJ451ELL390MK35S | United Chemi-Con | CAP ALUM 39UF 20% 450V RADIAL | 93% | View |
| 400BXW39MEFR14.5X20 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 91% | View |
| EKWA451ELL390MJ40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 90% | View |
| EKHE401ELL390MJ35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 88% | View |
Submit your RFQ for UCY2W390MHD3 and get a quote within 24 hours.
