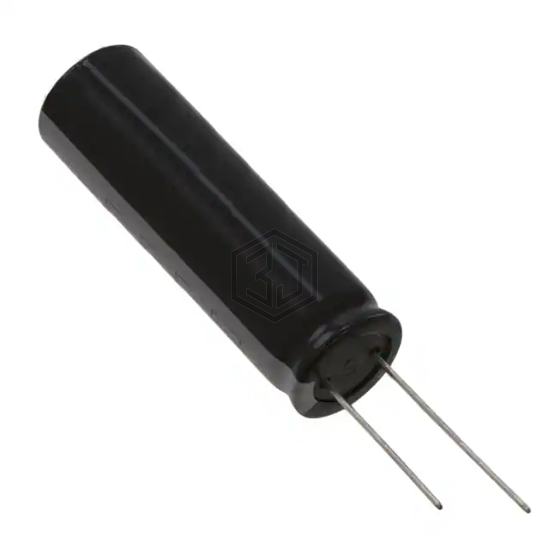

CAP ALUM 39UF 20% 500V RADIAL
500HXW39MEFR12.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 39UF 20% 500V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can.
In Stock: 5,504
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCYW6390MHD | Nichicon | CAP ALUM 39UF 20% 420V RADIAL | 92% | View |
| EKWA451ELL390MJ40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 91% | View |
| 420HXW39MEFR12.5X20 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 88% | View |
| EKXL401ELL390MK25S | United Chemi-Con | CAP ALUM 39UF 20% 400V RADIAL TH | 87% | View |
| UCY2V390MHD | Nichicon | CAP ALUM 39UF 20% 350V RADIAL | 84% | View |
| 400TXW39MEFR12.5X25 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL TH | 84% | View |
