CAP ALUM 150UF 20% 200V RADIAL

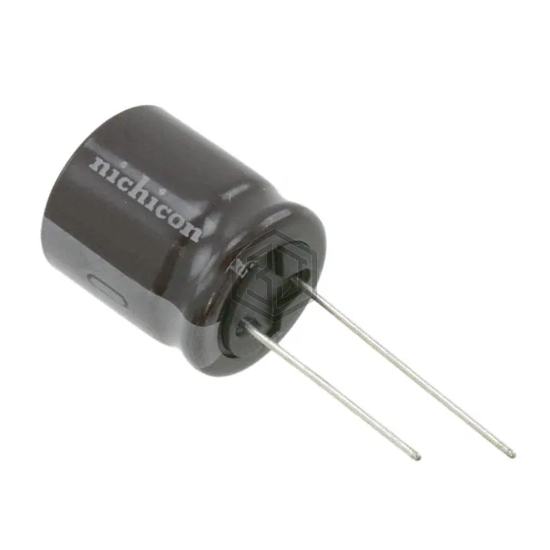

UCS2D151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 8,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 945 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V151MHD | Nichicon | CAP ALUM 150UF 20% 350V RADIAL | 77% | View |
| UCY2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 75% | View |
| 381LX151M200J202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 200V SNAP | 75% | View |
| 400HXW150MEFR14.5X45 | Rubycon | CAP ALUM 150UF 20% 400V RADIAL | 72% | View |
| 420QXW150MEFR18X35 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 71% | View |
| 200WXA150MEFC18X25 | Rubycon | CAP ALUM 150UF 20% 200V RADIAL | 60% | View |
