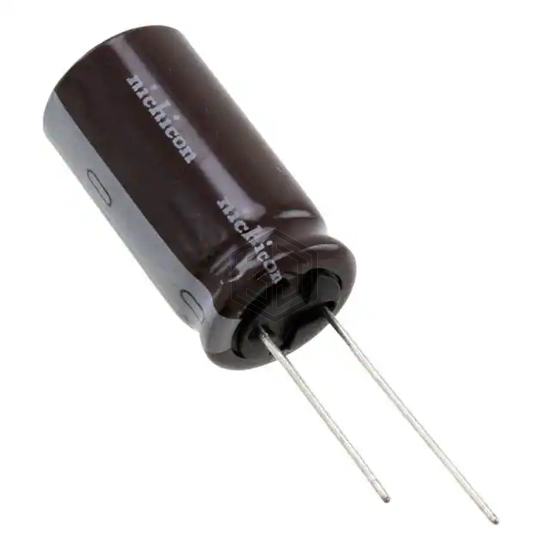

CAP ALUM 33UF 20% 500V RADIAL
UCY2H330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 500V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can.
In Stock: 1,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500LXW33MEFR14.5X25 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 100% | View |
| 450TXW33MEFR10X40 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL TH | 90% | View |
| EKXJ401ELL330MJ35S | United Chemi-Con | CAP ALUM 33UF 20% 400V RADIAL | 88% | View |
| UCY2D330MPD | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 72% | View |
| ED2A330MP508B5F4RU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| 601D336F250HE2 | Vishay Sprague | CAP ALUM 33UF 250V AXIAL | 56% | View |
