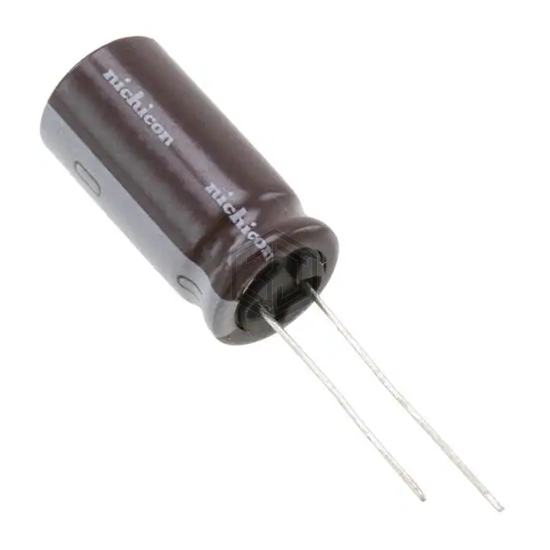

CAP ALUM 33UF 20% 400V RADIAL
UCY2G330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 6,918
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 385 mA @ 120 Hz |
| Ripple Current @ High Frequency | 770 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKHE451ELL330MJ35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 90% | View |
| MAL214267339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 90% | View |
| UCY2E330MHD3 | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 84% | View |
| EKXG201ETD330MJ20S | United Chemi-Con | CAP ALUM 33UF 20% 200V RADIAL | 65% | View |
| 100YXJ33MTA8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 57% | View |
| UBT2A330MPD8 | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for UCY2G330MHD and get a quote within 24 hours.
