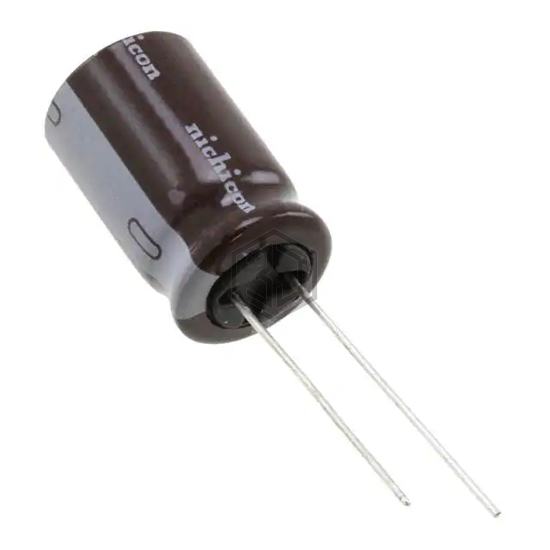

CAP ALUM 33UF 20% 250V RADIAL
UCY2E330MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2G330MHD | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 84% | View |
| EKXG201ETD330MJ20S | United Chemi-Con | CAP ALUM 33UF 20% 200V RADIAL | 78% | View |
| EKXF451ELL330ML25S | United Chemi-Con | CAP ALUM 33UF 20% 450V RADIAL TH | 77% | View |
| MAL214267339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 69% | View |
| 672D336H100EK5D | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 56% | View |
| 100YXJ33MTA8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 55% | View |
