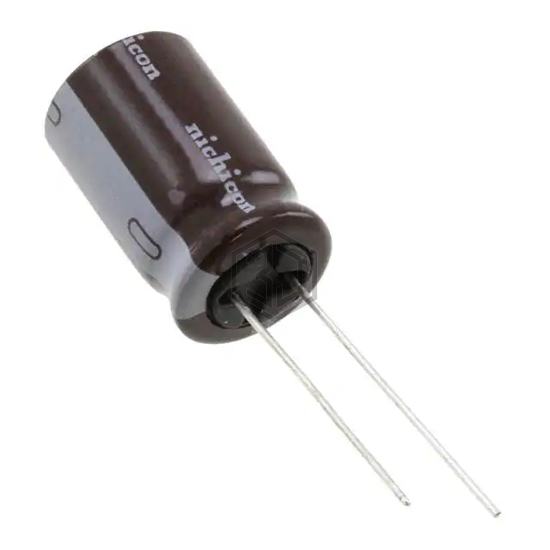

CAP ALUM 47UF 20% 250V RADIAL
UCY2E470MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 8,702
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250WXA47M18X20 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL | 100% | View |
| EKXG401EC3470MM20S | United Chemi-Con | CAP ALUM 47UF 20% 400V RADIAL | 80% | View |
| EKXL421ELL470MK30S | United Chemi-Con | CAP ALUM 47UF 20% 420V RADIAL TH | 79% | View |
| EKHE451ELL470MJ451 | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 62% | View |
| 672D476F200FV4D | Vishay Sprague | CAP ALUM 47UF 200V RADIAL | 60% | View |
| 630D476M100DC2A | Vishay Sprague | CAP ALUM 47UF 20% 100V AXIAL | 56% | View |
Submit your RFQ for UCY2E470MHD3 and get a quote within 24 hours.
