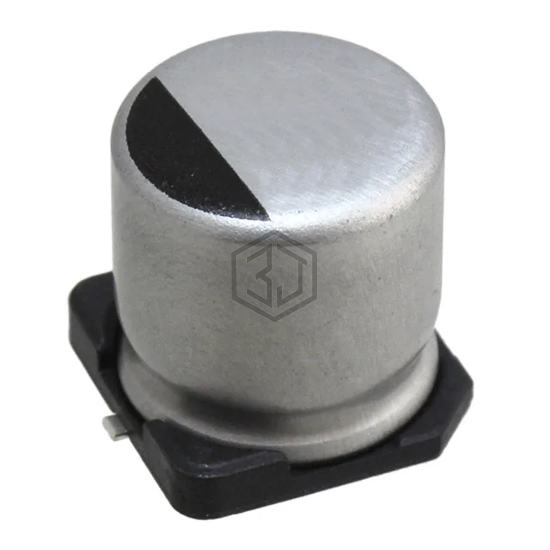

CAP ALUM 330UF 20% 16V SMD
UCX1C331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 135°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,100
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 150mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCX1C331MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1A331MCL1GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 86% | View |
| MAL216099806E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 64% | View |
| MAL216099705E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 80V SMD | 64% | View |
| MAL216099002E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 63% | View |
| MAL216099104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V SMD | 60% | View |
| MAL226099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 59% | View |
Submit your RFQ for UCX1C331MCL1GS and get a quote within 24 hours.
