Vishay Beyschlag/Draloric/BC Components
CAP ALUM 330UF 20% 80V SMD

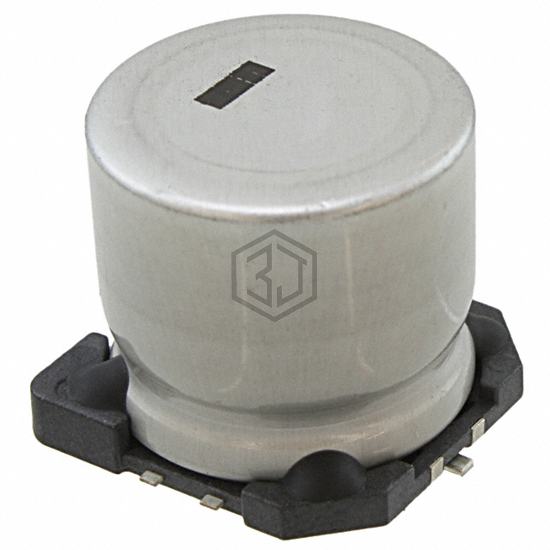

MAL216099705E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 330UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1500 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 312 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 390 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216099704E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 80V SMD | 78% | View |
| MAL216099806E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 74% | View |
| VUJ331M1HTR-1621S | SURGE | CAP ALUM 330UF 20% 50V SMD | 70% | View |
| VUJ331M1ETR-1313S | SURGE | CAP ALUM 330UF 20% 25V SMD | 56% | View |
| MAL226099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 56% | View |
| MAL216099104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V SMD | 52% | View |
