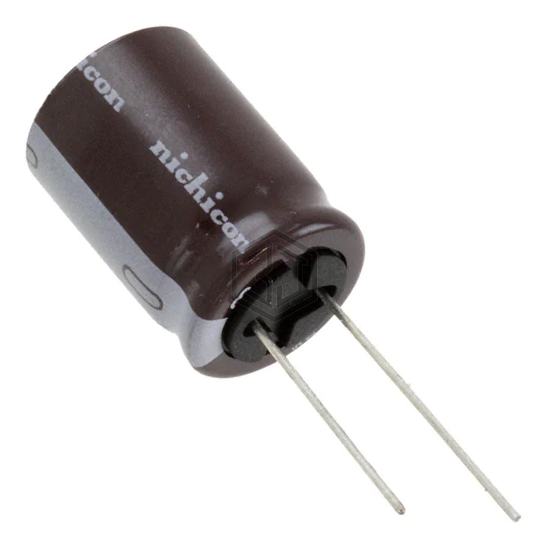

CAP ALUM 47UF 20% 450V RADIAL
UCS2W470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 8,224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450QXW47MEFC10X45 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 90% | View |
| 400TXW47MEFC10X45 | Rubycon | CAP ALUM 47UF 20% 400V RADIAL | 86% | View |
| 250BXW47MEFR16X16 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL | 77% | View |
| EEU-EE2E470S | Panasonic Electronic Components | CAP ALUM 47UF 20% 250V RADIAL | 74% | View |
| PEG124MB247VQE4 | KEMET | CAP ALUM 47UF 63V AXIAL | 56% | View |
| EEU-ED2C470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 160V RADIAL | 51% | View |
Submit your RFQ for UCS2W470MHD and get a quote within 24 hours.
