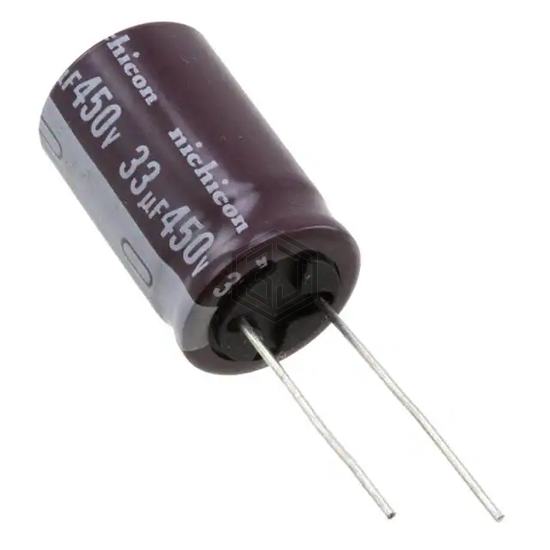

CAP ALUM 33UF 20% 450V RADIAL
UCS2W330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW33MEFR10X30 | Rubycon | CAP ALUM 33UF 20% 400V RADIAL | 84% | View |
| 350BXA33MEFC16X20 | Rubycon | CAP ALUM 33UF 20% 350V RADIAL | 60% | View |
| 250CFX33MEFC12.5X20 | Rubycon | CAP ALUM 33UF 20% 250V RADIAL | 59% | View |
| 861021483001 | Würth Elektronik | CAP ALUM 33UF 20% 450V SNAP | 59% | View |
| VHT33M63 | NTE Electronics, Inc | CAP ALUM 33UF 20% 63V RADIAL | 56% | View |
| UBT2W330MHD | Nichicon | CAP ALUM 33UF 20% 450V RADIAL | 55% | View |
Submit your RFQ for UCS2W330MHD1TN and get a quote within 24 hours.
