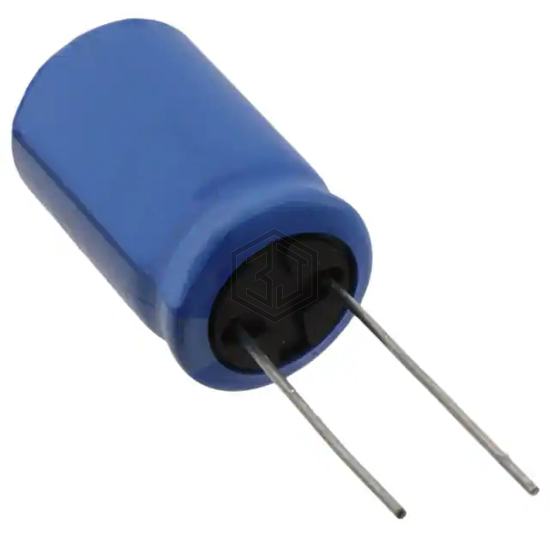

CAP ALUM 33UF 20% 450V RADIAL
UBT2W330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,517
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -25°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 203 mA @ 120 Hz |
| Ripple Current @ High Frequency | 365.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2G330MHD8 | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 93% | View |
| UBT2G330MHD8TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 93% | View |
| EGXE351ELL330ML25S | United Chemi-Con | CAP ALUM 33UF 20% 350V RADIAL | 89% | View |
| UBT2V330MHD1TN | Nichicon | CAP ALUM 33UF 20% 350V RADIAL | 89% | View |
| UBX2D330MHL1TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 77% | View |
| UBT1K330MPD8TD | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 68% | View |
