CAP ALUM 22UF 20% 450V RADIAL

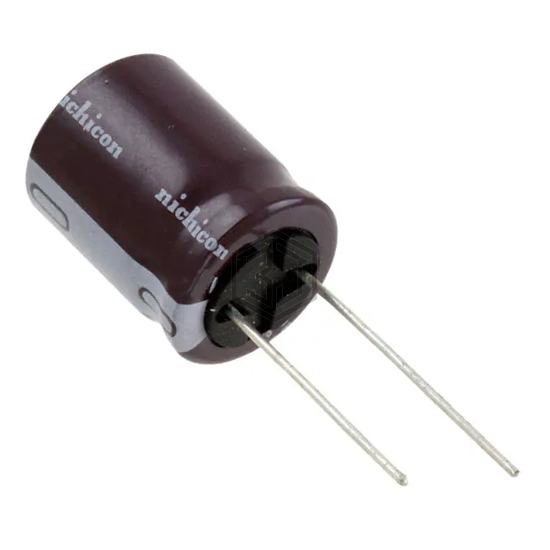

UCS2W220MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 7,913
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 365 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PV2H220MPI1625 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 94% | View |
| UCY2V220MHD3 | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 87% | View |
| MAL215257229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 450V RADIAL | 71% | View |
| UCY2E220MPD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 59% | View |
| UBT2A220MPD8TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 59% | View |
| 400WXA22MEFC16X20 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 57% | View |
Submit your RFQ for UCS2W220MHD1TN and get a quote within 24 hours.
