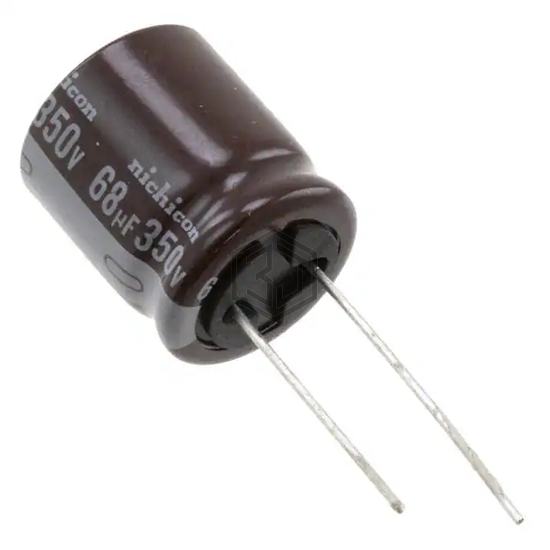

CAP ALUM 68UF 20% 350V RADIAL
UCS2V680MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,247
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 687.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.375 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RLD680M2VBK-1625S | Surge | CAP ALUM 350V POLAR | 95% | View |
| RXQ680M2EBK-1620S | Surge | CAP ALUM 250V POLAR | 82% | View |
| UCS2D680MHD1TO | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 80% | View |
| ALC40A680BC500 | KEMET | CAP ALUM SNAP-IN 105C | 78% | View |
| 200TXW68MEFR10X30 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL TH | 64% | View |
| 10YXF68MEFCT15X11 | Rubycon | CAP ALUM 68UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for UCS2V680MHD6TN and get a quote within 24 hours.
