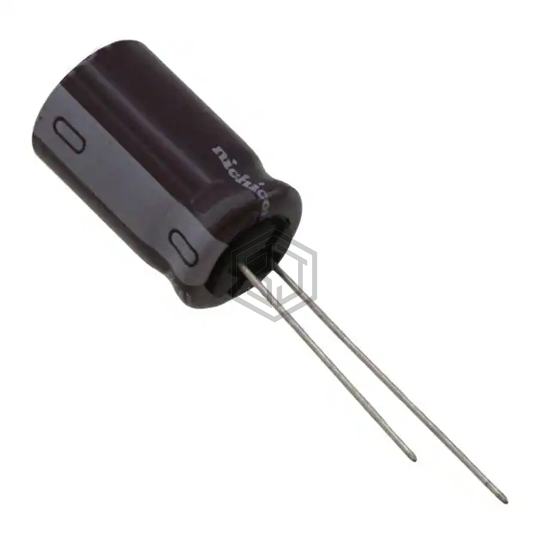

CAP ALUM 68UF 20% 200V RADIAL
UCS2D680MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200TXW68MEFR10X30 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL TH | 100% | View |
| UCY2C680MHD3TO | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 89% | View |
| UCS2V680MHD6TN | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 80% | View |
| 400LXW68MEFR12.5X35 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 77% | View |
| EKXJ421ELL680MUP1S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL | 74% | View |
| 450HXW68MEFR10X55 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 71% | View |
Submit your RFQ for UCS2D680MHD1TO and get a quote within 24 hours.
