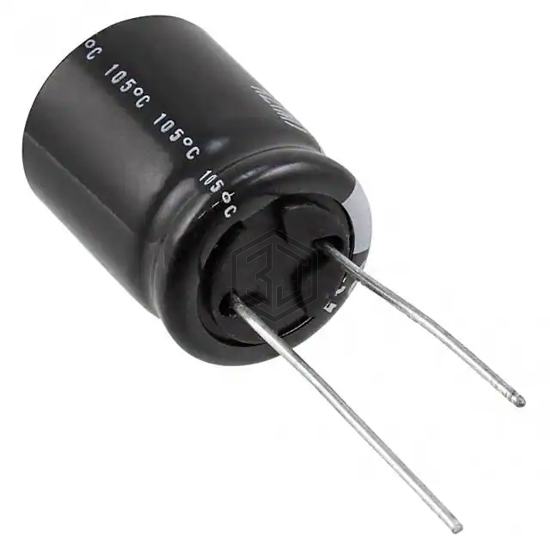

CAP ALUM 68UF 20% 160V RADIAL
URZ2C680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2D680MRD6 | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 91% | View |
| UBT2C680MHD | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 88% | View |
| 672D686H100EK3C | Vishay Sprague | CAP ALUM 68UF 100V RADIAL | 70% | View |
| EKXL421ELL680MM20S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL TH | 57% | View |
| 860160674018 | Würth Elektronik | CAP ALUM 68UF 20% 50V RADIAL | 56% | View |
| 420LXW68MEFR12.5X35 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 56% | View |
