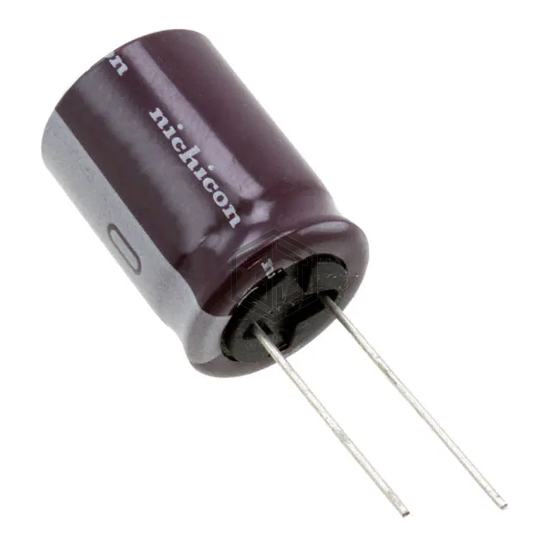

CAP ALUM 150UF 20% 250V RADIAL
UCS2E151MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 970 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.94 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216353151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 250V SNAP | 98% | View |
| EKXJ351ELL151ML45S | United Chemi-Con | CAP ALUM 150UF 20% 350V RADIAL | 87% | View |
| UCY2C151MHD3 | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 85% | View |
| UCS2C151MHD | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 85% | View |
| B43254E2157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 250V SNAP | 77% | View |
| B43505A5157M80 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 75% | View |
Submit your RFQ for UCS2E151MHD1TN and get a quote within 24 hours.
